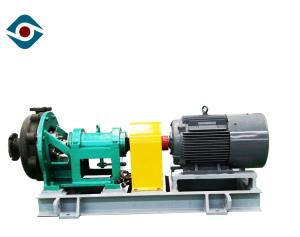

ISO9001 Chemical Process Pump Chemical Circulation Pump for Increase Liquid Pressure
Operation Data
| Discharge Size | 20mm ~250mm |
| Inlet Size | 32mm~300mm |
| Capacity | 4~2000m³/h |
| Head | 2~160m |
| Maximal Efficiency | 65% |
| NPSH | 0m~3.5m |
| Allowable Max Motor Power | 710 KW |
| Allowed Max Particle Size | 20mm |
| Seal Type | mechanical seal/dynamic seal/packing seal |
| RPM | 1450r/min~2900r/min |
| Material of Liner | Metal (according to working conditions ) |
Product Introduction
1. CZ-series pumps have advanced hydraulic model, high efficiency and good anti-cavitation properties. With a high degree of standardization&wide universality and mounting dimension which is in accordance with standard IS03661,CZseries pumpsareemployed universally in global industry.
2. In the fields of chemicals, petrochemical industry, metallurgy, synthetic fibre industry, pharmaceutical industry,paper making industry, air conditioning industry , sugar industry, heating industry, sea water desalination, and water supply , CZ-series pumpsare suitable to convey neutral liquid medium, corrosive liquid medium, clear liquid medium and liquid medium containing few solid particles.
Product Features
1. The structure is safe and reliable, the operation of the pump is stable.
2 The pump have high average efficiency, low energy consumption, is the ideal choice for energy-saving products.
3. The pump has very broad performance range. Flow rate (Q) can be up to 2000m3 / h, head (H) can be up to 160m, and the flow and the head of pump are closely spaced, which provided the convenience for user to select pump.
4. The axial force of the series pump was balanced by wearing ring and balance hole, residual axial force was born by thrust bearing.
5. Cooling type of bearing has air cooling, fan cooling, water-cooling, the three types can be selected depending on the temperature of the pump. Fan cooling is particularly suitable for no water or poor water quality in some region.
6. High degree of standardization, good commonality, reduce largely inventory of user spare parts.
7. The hydraulic components of pump select material refined, according to working conditions, what material to choose is completely determined by the user.
Structure Diagram
Applications
Acid pickling process
Painting process
Textile industry
Pharmacy and Health
Electroplating industry
Chlorine water and waste water treatment
Petroleum Industry
Chemical Industry
Adding acid process.etc.
Package
| MOQ | 1 Set |
| OEM | Acceptable |
| Payment | L/C,T/T,Western Union |
| Supply Ability | 20 Sets/Week |
| Packaging | Packed in wooden cases or according to customer's requirements |
| Delivery Time | 20~40 working days or according to the order quantity |
| Shipping | Sea, rail or air transport |
